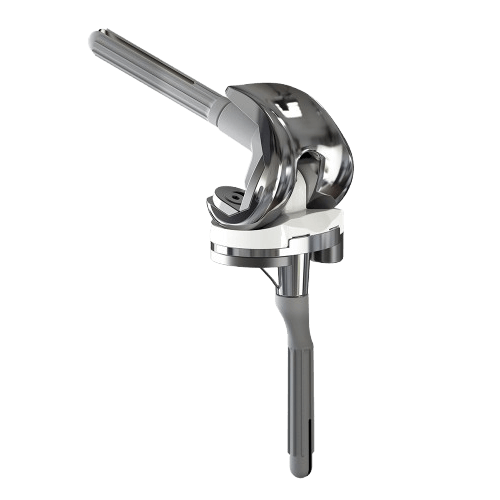

RSK PS High Flexion Hybrid Revision Knee System
Product Details

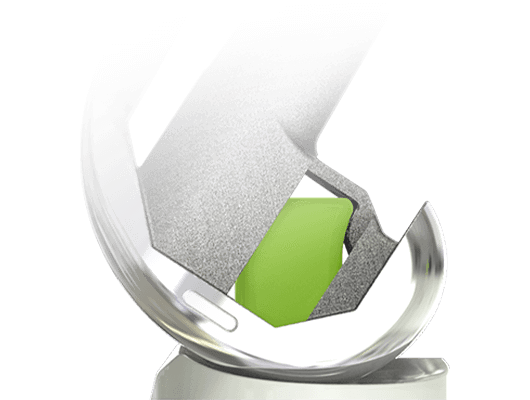

● Optimized Femoral Design
8 Sizes with Built-In 5° Valgus Angle
Ensures optimal bone coverage and adaptability.
Enlarged Lateral Posterior Condyle & Ultra-Mirror Polishing
Increases joint contact, reduces wear, and minimizes debris.
● Defect Management

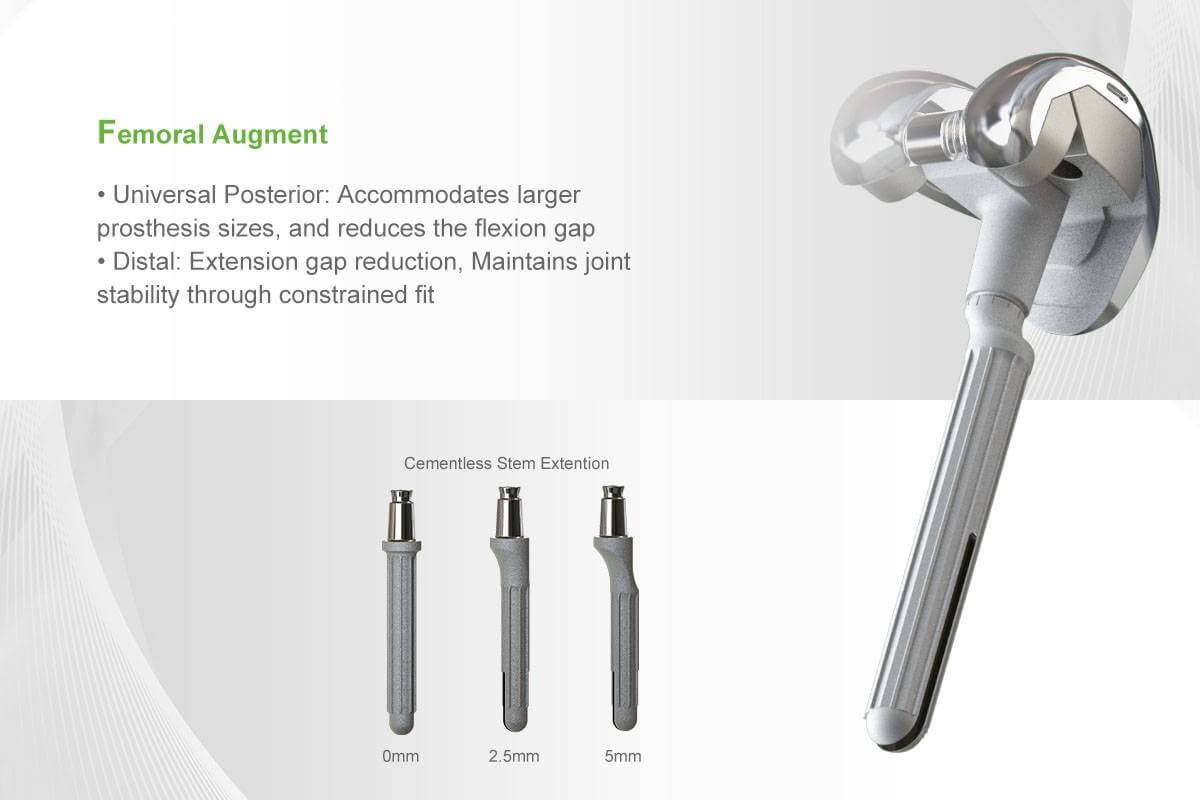

Extension Rod and Block Connectivity
Facilitates effective management of femoral bone defects during surgery.
● Efficient Tibial Bearing Insertion
High Flexion Support
Compatible with all femoral condyle models and supports up to 145° flexion.
Easy Posterior Insertion
Ensures quick, accurate installation with the tibial tray and a widened, heightened post with a hook reduce dislocation risk.
● Tibial Tray Design
Advanced Locking Mechanism & Polished Surface
Minimizes backside micromotion and wear while accepting augments and stem extensions for complex cases.
1:1 Tibiofemoral Surface Contact & Narrowed Keel
Maximizes load distribution and conserves bone stock.
Special Description

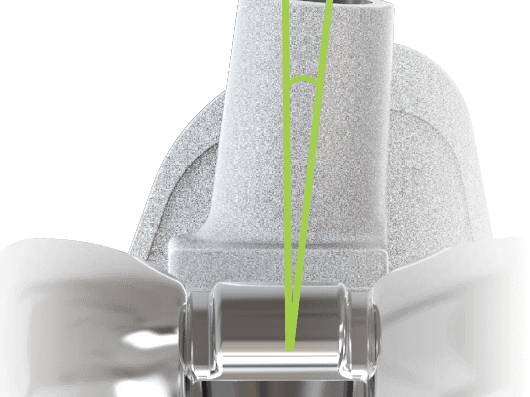

5° Valgus Stem Alignment
• Anatomical stem valgus angle for natural femoral fit
• Accommodates offset stems to optimize component positioning

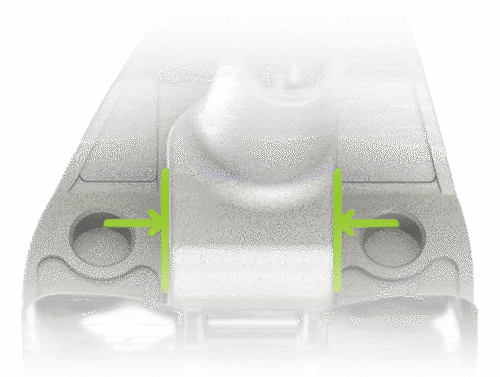

Bone-Preserving Intercondylar Design
• ≤22mm narrow intercondylar box
• Maximizes bone conservation in distal femur
Dual Constraint System
• 0.5° controlled internal/external rotation
• 1° varus/valgus constraint tolerance
• Non-hinged constrained bearing maintains stability in ligament-deficient clinical scenarios

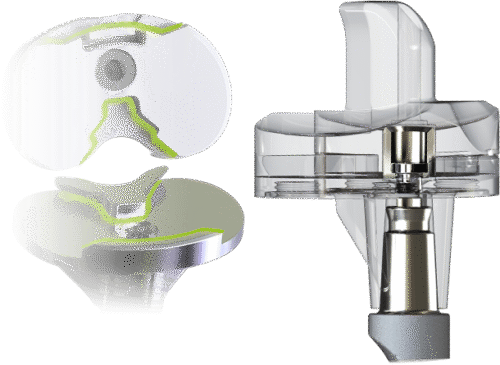

Double Locking Mechanism
NO.1 Locking Screw
NO.2 Advanced locking mechanism reduces backside micromotion to the lowest level
Tibial Augment
• Reestablish joint line alignment
• Reduce extension gap
• VS wedge design minimizes shear forces, improves joint stability

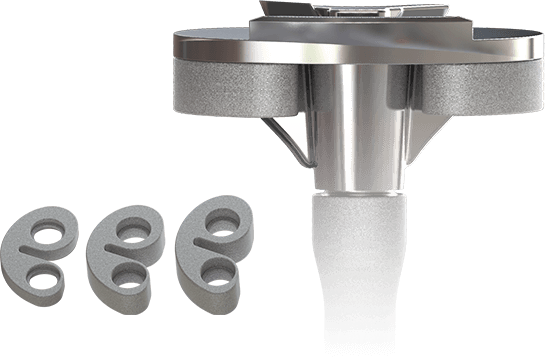

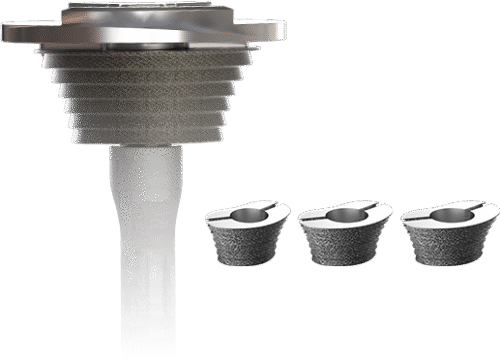

Tibial Cone
- Stepped geometry for compressive bone loading
- Preserves native joint line position
- Eliminates bone graft requirements
Special Instrumentation

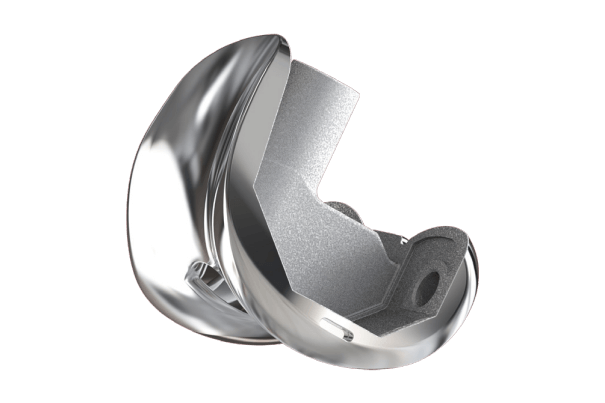

RSK™ Femoral Condyle (PS)
| Material | Spec (mm) | |
| CoCrMo | 1# L | 1# R |
| 2# L | 2# R | |
| 3# L | 3# R | |
| 4# L | 4# R | |
| 5# L | 5# R | |
| 6# L | 6# R | |
| 7# L | 7# R | |
| 8# L | 8# R | |

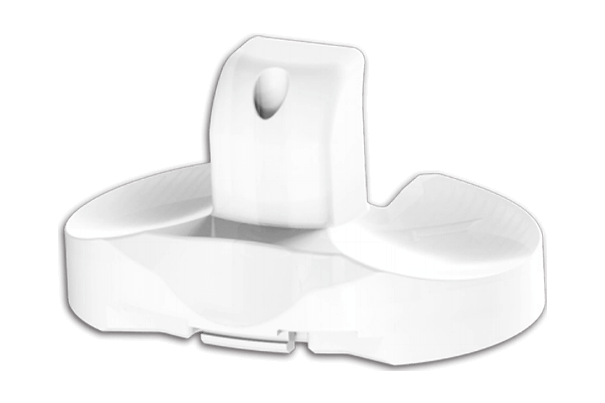

RSK™ Tibial Bearing (PS)
| Material | Spec (mm) | A/P (mm) | M/L (mm) |
| Germany UHMWPE | 1# 10mm, 12mm, 14mm, 16mm, 18mm, 20mm | 38 | 59 |
| 2# 10mm, 12mm, 14mm, 16mm, 18mm, 20mm (for Tibial Tray 2#/3#) |
41/43 | 63/67 | |
| 4# 10mm, 12mm, 14mm, 16mm, 18mm, 20mm (for Tibial Tray 4#/5#) |
46/48 | 71/75 | |
| 6# 10mm, 12mm, 14mm, 16mm, 18mm, 20mm (for Tibial Tray 6#/7#) |
51/53 | 79/83 |

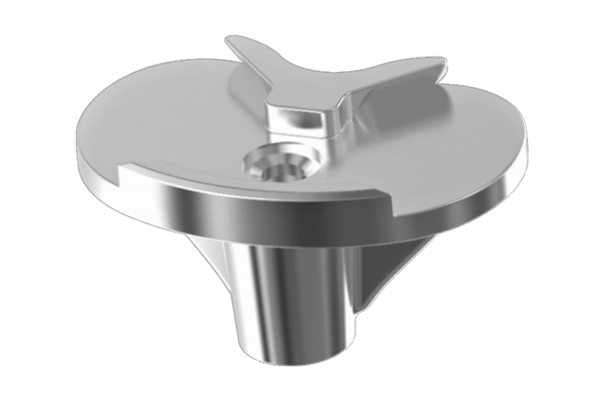

RSK™ Tibial Tray
| Material | Spec (mm) | A/P (mm) | M/L (mm) |
| CoCrMo | 1# | 38 | 59 |
| 2# | 41 | 63 | |
| 3# | 43 | 67 | |
| 4# | 46 | 71 | |
| 5# | 48 | 75 | |
| 6# | 51 | 79 | |
| 7# | 53 | 83 |
