SKII CR High Flexion Total Knee System
High Flexion Total Knee System
Product Overview
- PCL Preservation
Retains the posterior cruciate ligament (PCL) to enhance proprioception and natural knee function. - Intraoperative Flexibility
Multiple options (CR & AS or PS) allow seamless switching during surgery for optimized patient outcomes. - High-Flexion Design
Femoral posterior condyle morphology enables joint flexion beyond 145° for improved mobility. - Reduced Wear & Debris
Ultra-smooth mirror surface finish on the femoral condylar prosthesis minimizes postoperative wear and debris generation.
Special Description
Designed for high flexion activity

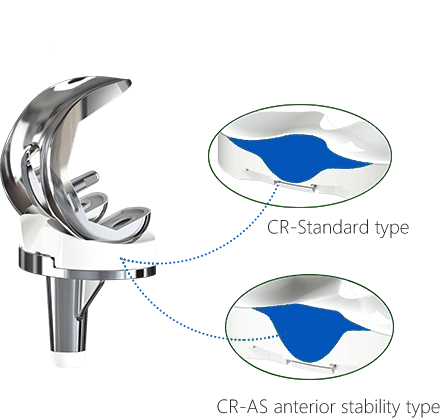

2 options of tibial bearings: CR and AS
Mirror-polished surface finish to reduce bearing wear during motion
3 degrees posterior slope
15 degrees internal/external rotation

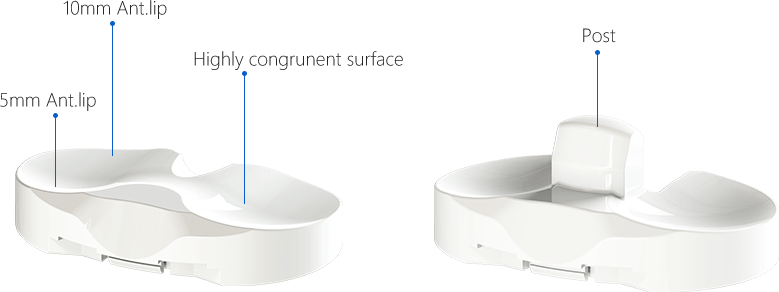

Prominent 10 mm anterior lip
5 mm posterior lip
6 degrees internal/external rotation
- Anterior Constraint
- Posterior Lip & Central projection
- Locking Tab to Secure Insert
- Interference Fit Between insert and Tibial Base
Absorb anterior/posterior, medial/lateral, and rotational forces
Product Features-Anti-Dislocation Design
Ultra-congruent deep-dish design insert with a prominent anterior lip, acts as a posterior-stabilizing device by allowing the femoral component to move within the deep-dish configuration. it provides patients with more natural motion and the potential for greater implant longevity without requiring a Ps post
Special Instrumentation

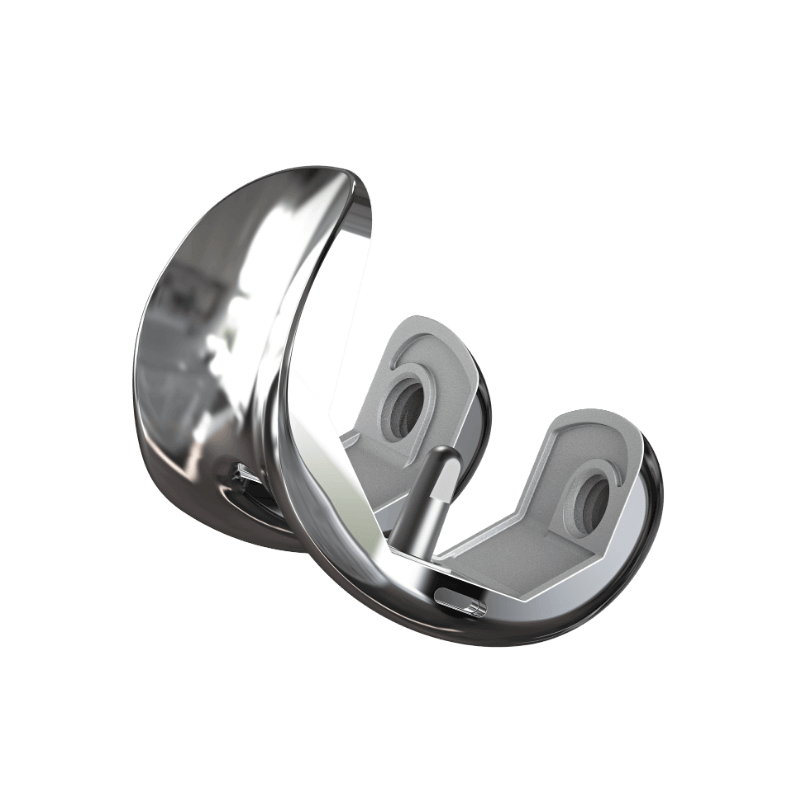

SKII™ Femoral Condyle (CR)
| Material | Spec (mm) | |
| CoCrMo | 1# L | 1# R |
| 2# L | 2# R | |
| 3# L | 3# R | |
| 4# L | 4# R | |
| 5# L | 5# R | |
| 6# L | 6# R | |
| 7# L | 7# R | |
| 8# L | 8# R | |
| 9# L | 9# R | |

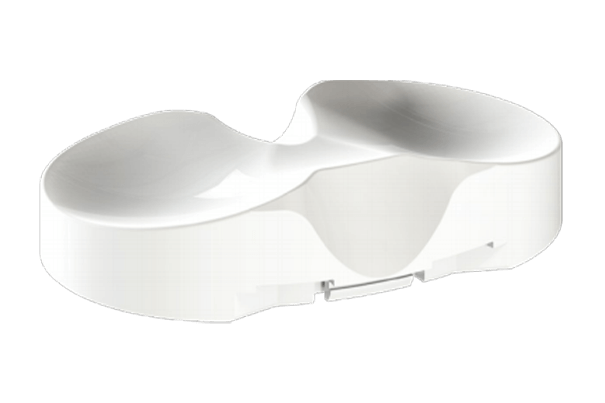

SKII™ Tibial Bearing (CR)
| Material | Spec (mm) | A/P (mm) | M/L (mm) |
| Germany UHMWPE | 1# 10mm,12mm,14mm,16mm | 38 | 59 |
| 2# 10mm,12mm,14mm,16mm (for Tibial Tray 2#/3#) |
41/43 | 63/67 | |
| 4# 10mm,12mm,14mm,16mm (for Tibial Tray 4#/5#) |
46/48 | 71/75 | |
| 6# 10mm,12mm,14mm,16mm (for Tibial Tray 6#/7#) |
51/53 | 79/83 |

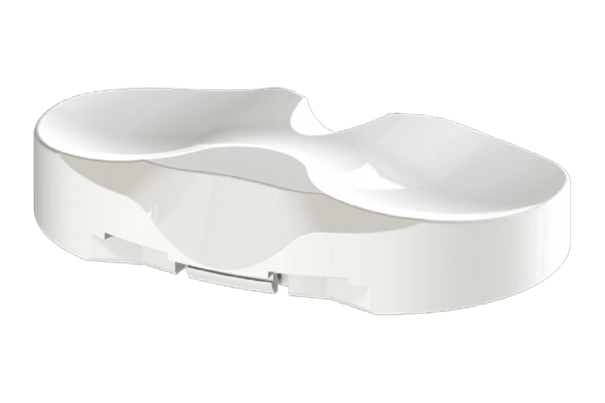

SKII™ Tibial Bearing (Anterior Stabilized)
| Material | Spec (mm) | A/P (mm) | M/L (mm) |
| Germany UHMWPE | 1# 10mm,12mm,14mm,16mm | 38 | 59 |
| 2# 10mm,12mm,14mm,16mm | 41 | 63 | |
| 3# 10mm,12mm,14mm,16mm | 43 | 67 | |
| 4# 10mm,12mm,14mm,16mm | 46 | 71 | |
| 5# 10mm,12mm,14mm,16mm | 48 | 75 | |
| 6# 10mm,12mm,14mm,16mm | 51 | 79 | |
| 7# 10mm,12mm,14mm,16mm | 53 | 83 |

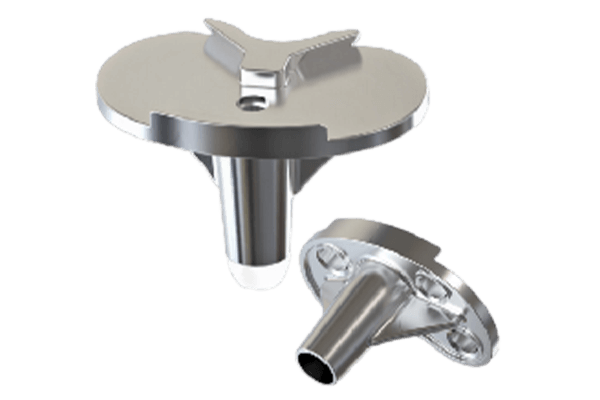

SKII™ Tibial Tray
| Material | Spec (mm) | A/P (mm) | M/L (mm) |
| CoCrMo | 1# | 38 | 59 |
| 2# | 41 | 63 | |
| 3# | 43 | 67 | |
| 4# | 46 | 71 | |
| 5# | 48 | 75 | |
| 6# | 51 | 79 | |
| 7# | 53 | 83 |
