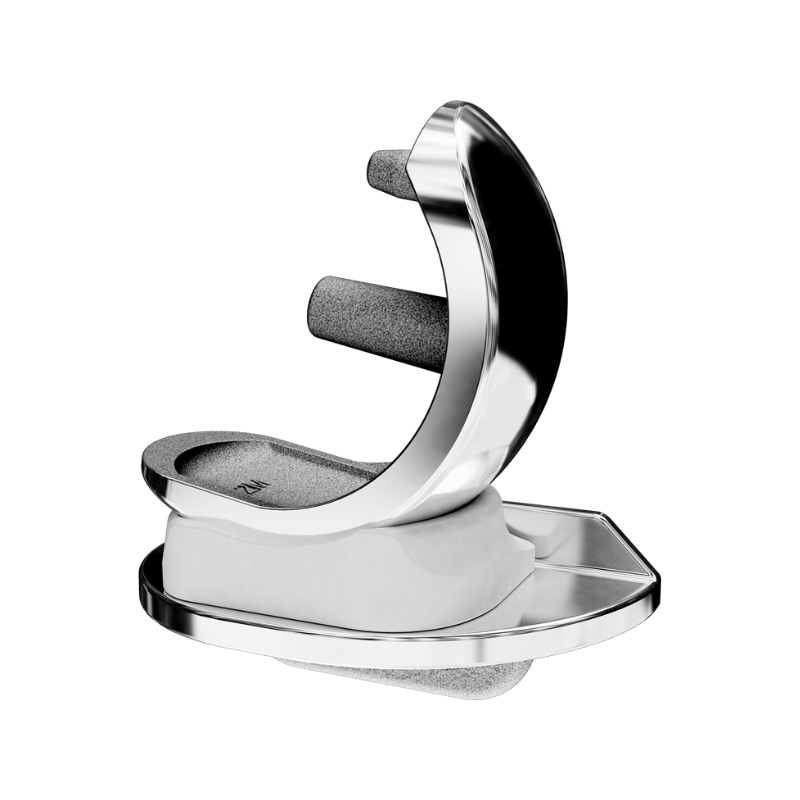

AUSK Hybrid Fixation
Unicompartmental Knee System
Product Overview
● Optimized Design
Conforming, spherical design minimizes contact stress throughout the entire range of motion.
Curved inner geometry ensures minimal bone removal and maintains stability during movement.
● Enhanced Stability
Twin pegs reinforce rotational stability.
The raised anterior lip and square lateral side are engineered to prevent bearing dislocation.
● Wear Resistance & Mobility
Incorporates cross-linked polyethylene (XLPE) for increased wear resistance.
Mobile bearing remains fully congruent with the femoral component, ensuring consistent performance throughout the range of motion.
● Surgical Efficiency
Anatomically shaped for optimal bone coverage.
A straight keel design serves as a guide to simplify and enhance surgical operation.
Special Description

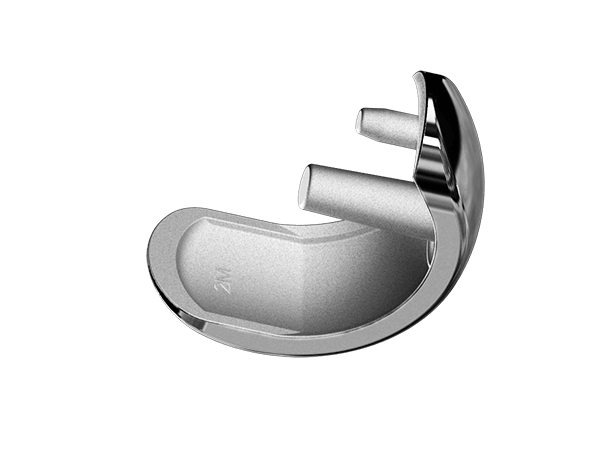

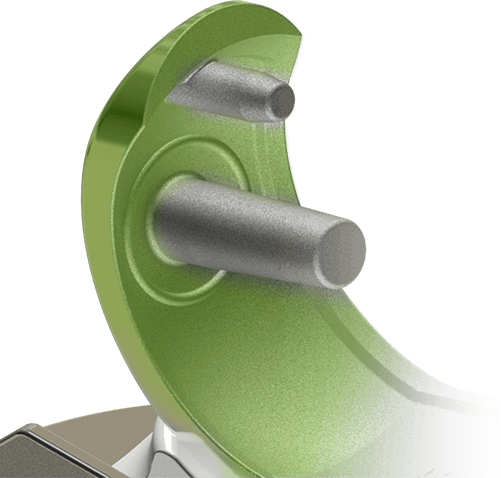

Femoral Condyle
Conforming, spherical design minimizes contact
stress throughout entire range of motion
Twin pegs for strengthened rotational stability
Curved inner geometry for minimal bone
removal and stability throughout entire
range of motion

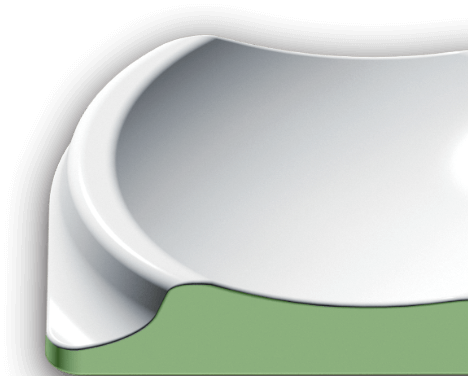

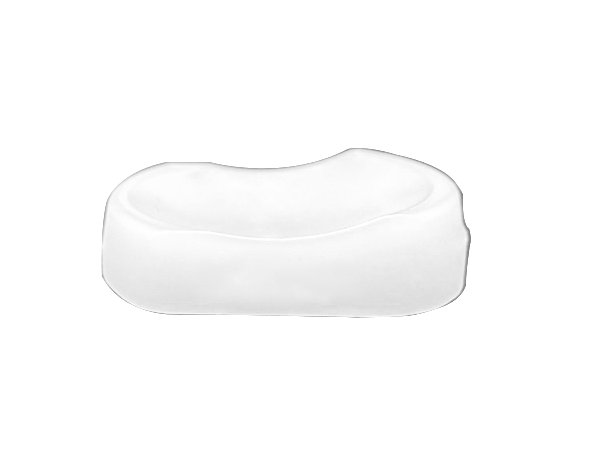

Mobile-bearing
Increased wear resistance with cross-linked
polyethylene(XLPE)
Mobile bearing designed to remain fully
congruent with femoral condyle throughout
entire range of motion
Raised anterior lip & square lateral side to
prevent bearing dislocation

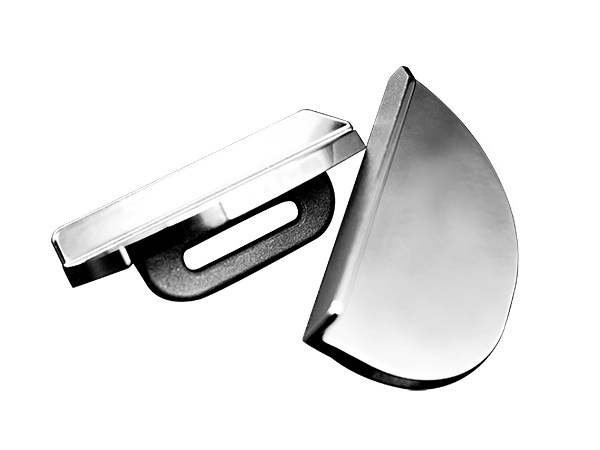

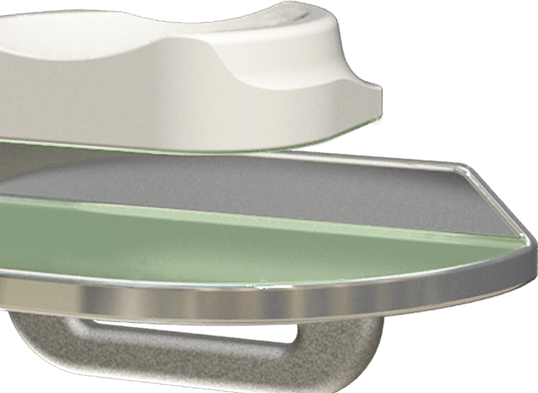

Tibial Tray
True mobile meniscal bearing knee system
A straight keel design, as a guider making
the operation more convenient
Anatomical shape for optimal bone
coverage
Dynamic Fatigue Test
10 milion cycles dynamic fatigue test (ASTM F3140-17) show
excellent results and no risk of fracture.
Specification
AUSK Femoral Condyle (Mobile)
| Material | Spec (mm) |
| CoCrMo | 1# (for Tibial Bearing 1#) |
| 2# (for Tibial Bearing 2#) | |
| 3# (for Tibial Bearing 3#) | |
| 4# (for Tibial Bearing 4#) |
AUSK Tibial Bearing (Mobile）
| Material | Spec (mm) | |
| Germany Highly Crosslinked PE | 1# 3mm R/L | 3# 3mm R/L |
| 1# 4mm R/L | 3# 4mm R/L | |
| 1# 5mm R/L | 3# 5mm R/L | |
| 1# 6mm R/L | 3# 6mm R/L | |
| 1# 7mm R/L | 3# 7mm R/L | |
| 2# 3mm R/L | 4# 3mm R/L | |
| 2# 4mm R/L | 4# 4mm R/L | |
| 2# 5mm R/L | 4# 5mm R/L | |
| 2# 6mm R/L | 4# 6mm R/L | |
| 2# 7mm R/L | 4# 7mm R/L | |
AUSK Tibial Tray (Mobile）
| Material | Spec (mm) | |
| CoCrMo | 1# L | 1# R |
| 2# L | 2# R | |
| 3# L | 3# R | |
| 4# L | 4# R | |
| 5# L | 5# R | |
| 6# L | 6# R | |
| 7# L | 7# R | |
