SEE Trebecular Acetabular Cup

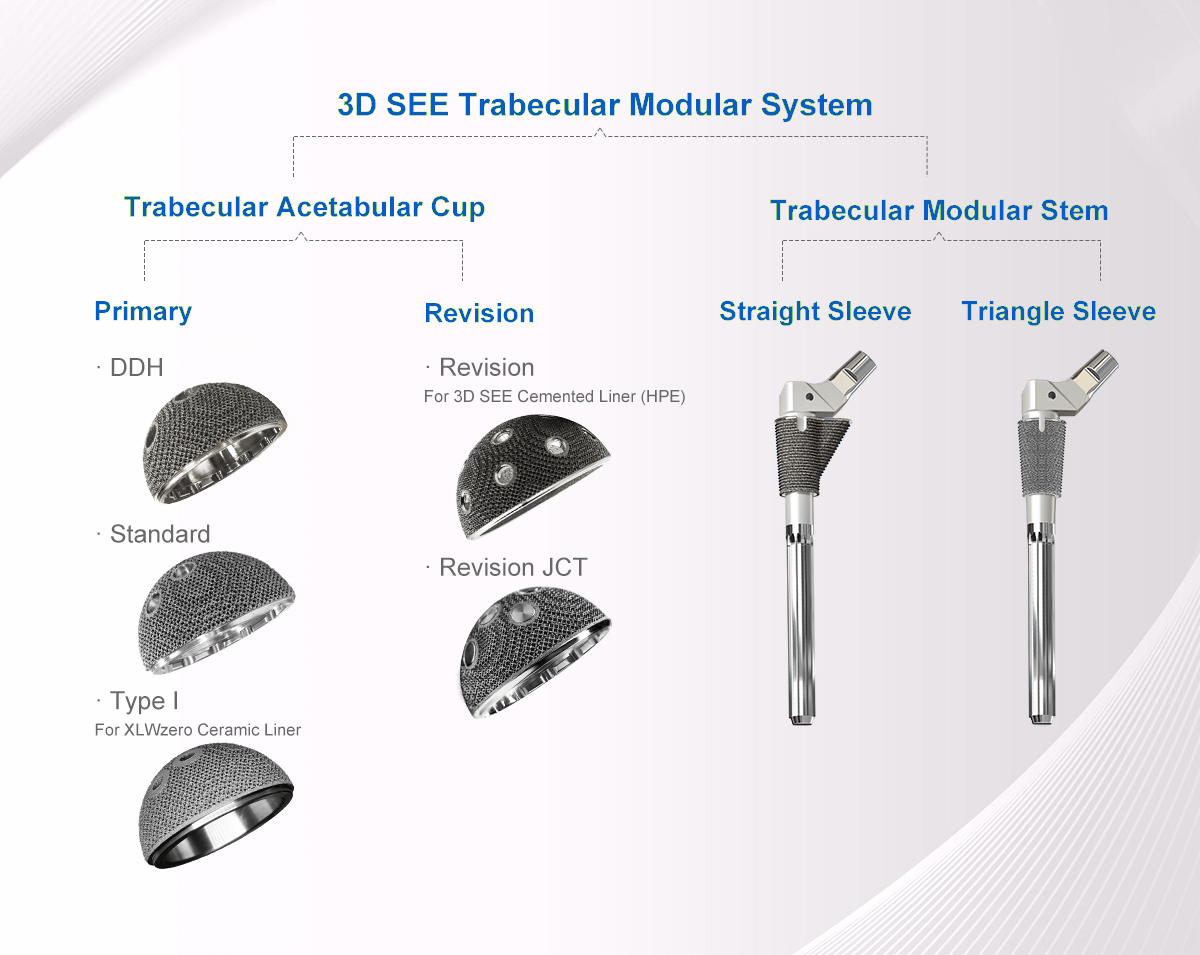

Trabecular Acetabular System
Product Overview
- Comprehensive Clinical Application
Designed to address hip dysplasia (DDH), primary hip replacement, and revision procedures, meeting diverse surgical needs. - Dual Cup-Liner Connection Options
Provides two secure attachment methods to enhance surgical flexibility and stability.
- Cemented Connection:
Enables precise placement and angle adjustments within a safe zone using HPE bone cement, reducing the risk of postoperative dislocation. - Press-Fit Connection:
Features a locking mechanism for secure liner fixation, compatible with HPE-10° and Harmony 10° liners, making it ideal for hip revision surgeries.
Special Description

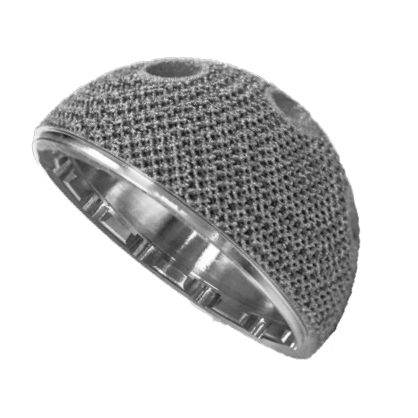

Trabecular Acetabular Cup DDH & Standard
Screw hole
Exceptional initial stability:
DDH: 6 screw holes (for deformity fixation)
Standard: 3 screw holes (fixed to the posterior superior bone for effective anchoring)
Revision: "Starry Sky" screw hole—6 dome holes 9 peripheral holes (all Φ 6.0 screw)

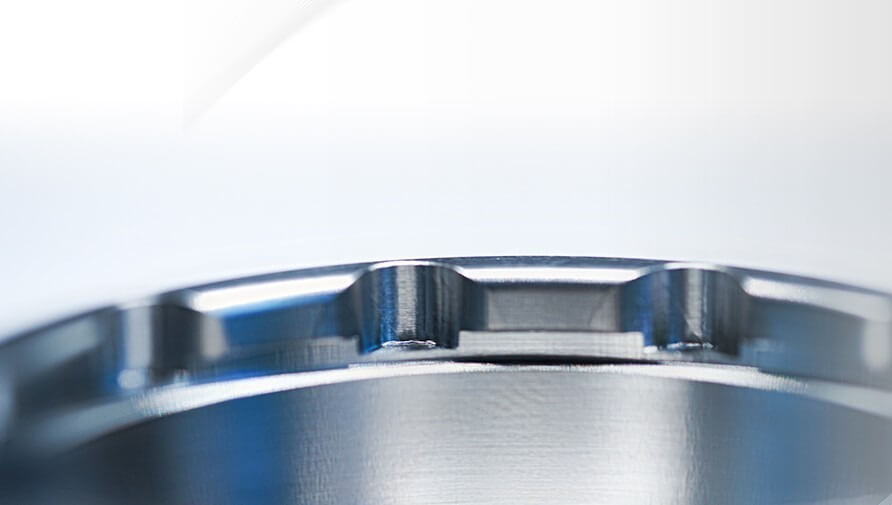

Triple locking mechanism
Maximize liner-to-cup contact to achieve effective force transmission, minimize micromotion, and reduce debris.

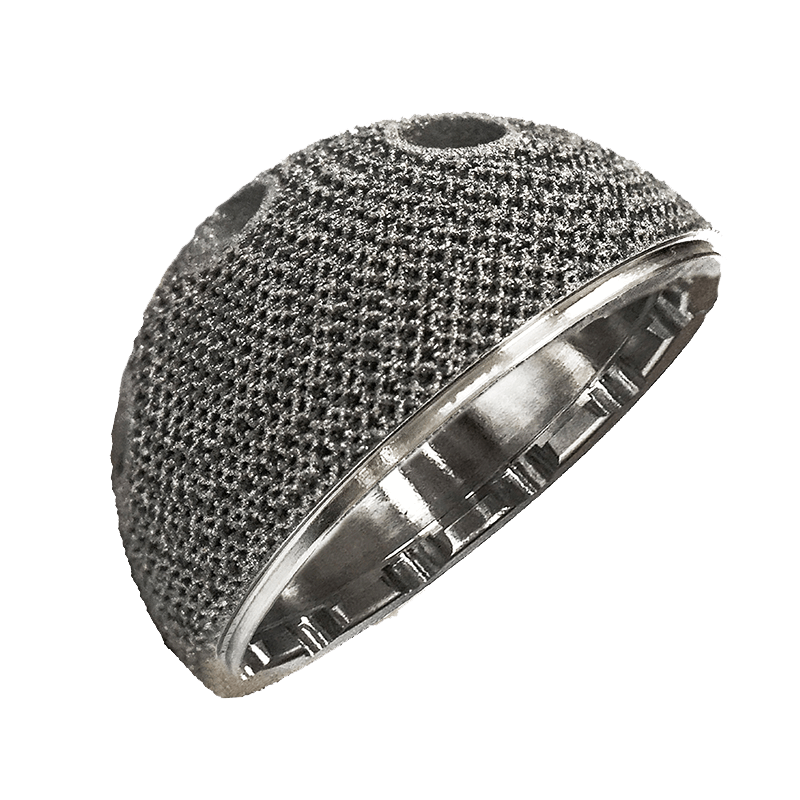

3D EBM printing technology
Excellent biocompatibility;
No risk of surface delamination, promoting long-term bone growth
1.08 friction coefficient on trabecular surface
High surface roughness, increasing friction with host bone for superior initial stability
Tight press-fit design(1.5mm, single-size rasp)
Exceptional initial stability
75%-80% High porosity
Achieves reliable bone growth:
Increases contact with the host bone
Facilitates cell and blood flow, promoting bone formation
Reduces elastic modulus, minimizing stress shielding
3D interconnected porous structure
Ensuring reliable bone growth
600-800 µm pore size
In vivo tests show: 800 μm pore size promotes bone growth

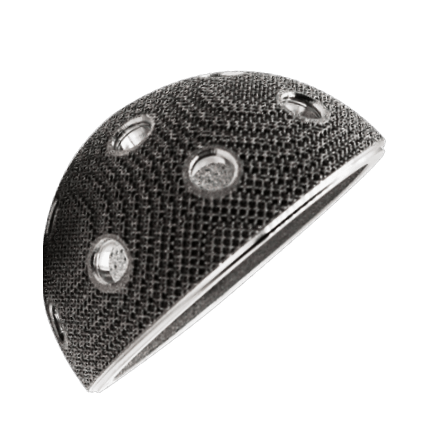

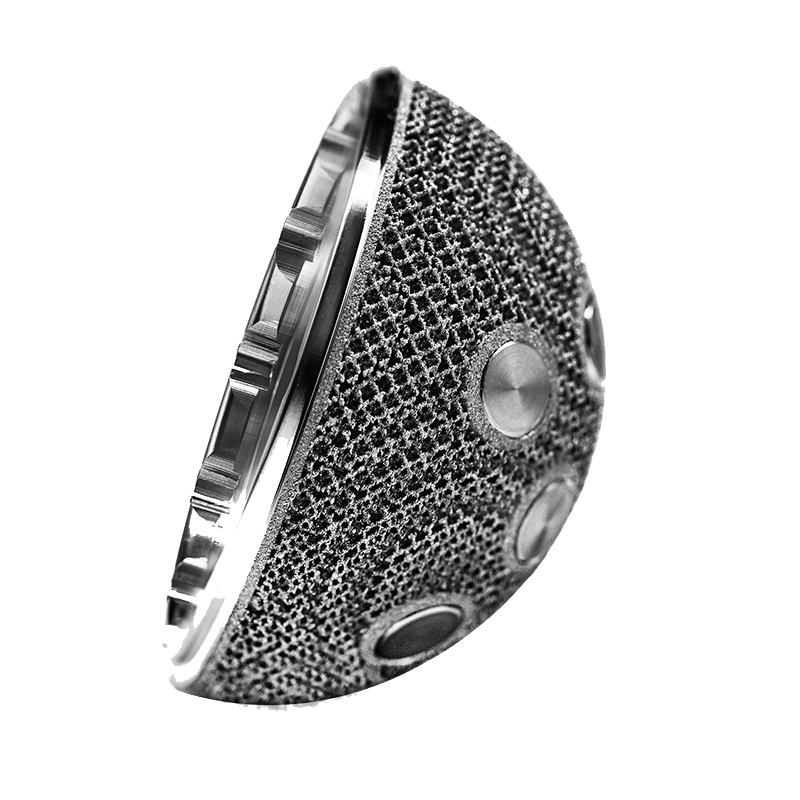

SEE Trabecular Acetabular Cup - Revision
"Starry Sky" screw hole 6 dome holes 9 peripheral holes (all Φ 6.0 screw)
Providing flexibility during surgery and allowing the surgeon to choose the optimal screw placement
More suitable for patients with severe acetabular bone defects and irregular acetabular
Load direction aligns more closely with the body's natural lower limb biomechanics, providing better initial and long-term stability
Streamlined cup thickness
Preserves more bone while ensuring outer diameter and strength
Allows for larger femoral heads, improving range of motion, lower dislocation rates, and enhancing stability
Sizes 48#—74# comprehensively cover all needs for acetabular revision and complex primary replacements

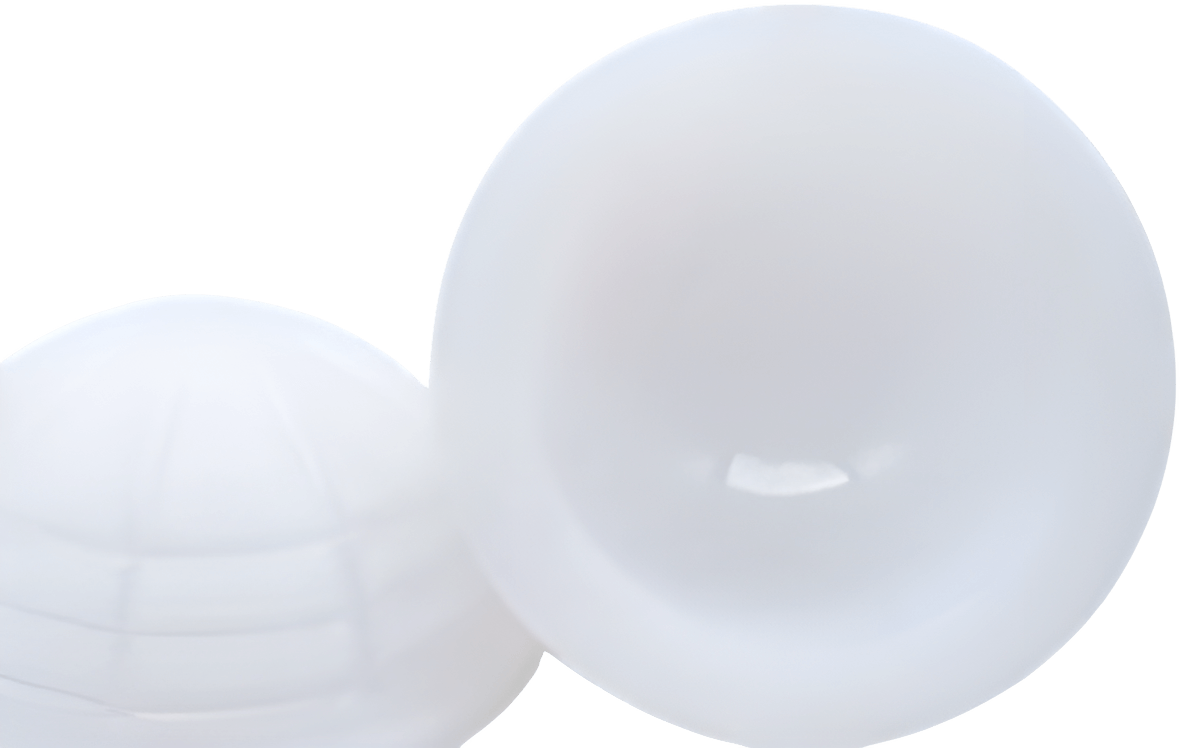

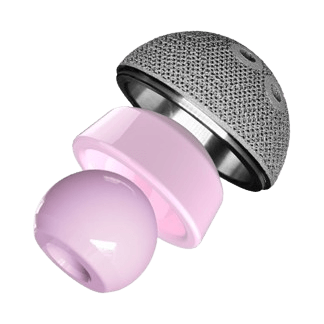

Acetabular cup with HXLPE cemented liner
The acetabular cup can be adjusted based on the specific condition of the acetabulum. Afterward, the cemented liner can be adjusted within a defined "safe zone" to fine-tune anteversion and abduction angles, making revision surgery more flexible and straightforward, while preventing postoperative dislocation
The highly crosslinked material offers excellent wear resistance and anti-oxidation properties

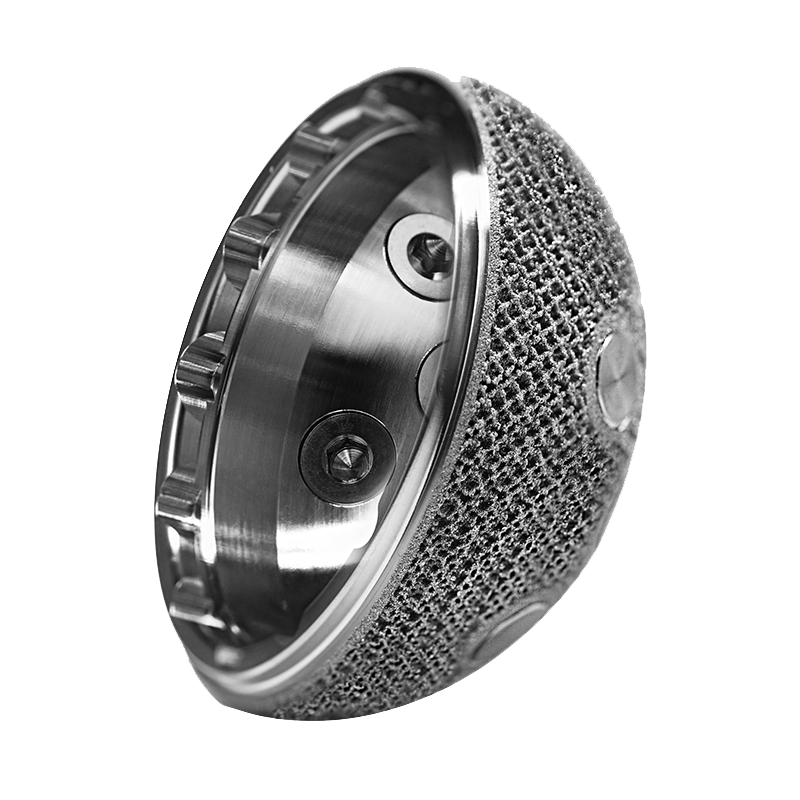

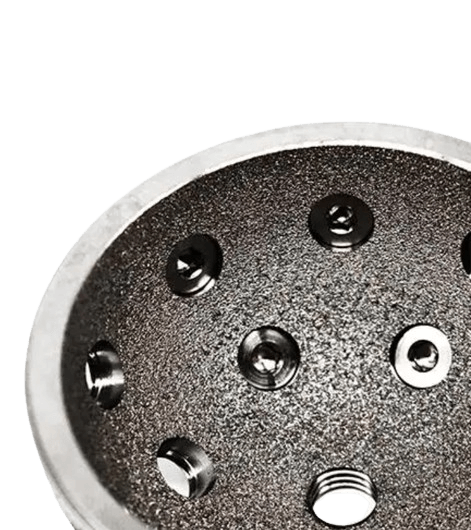

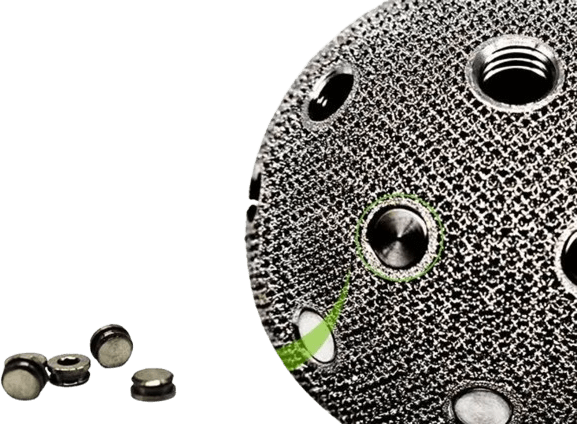

Hole Cover (threaded)
Sealing in areas where acetabular screws are not implanted
Increase acetabular contact area
Increase overall strength of the acetabular cup
Prevent leakage of bone cement

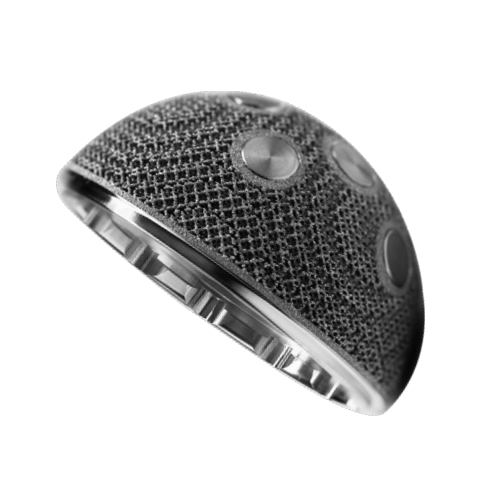

SEE Trabecular Acetabular Cup Revision JCT

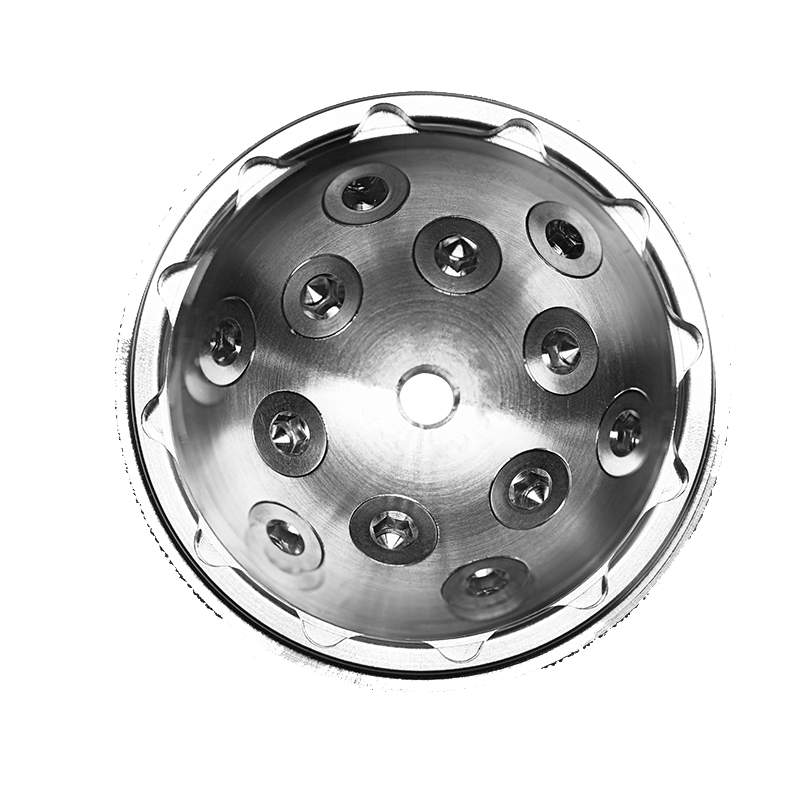

"Starry Sky" screw hole design
The design features 6 evenly distributed peripheral screw holes and 6 dome screw holes, providing flexibility during surgery and allowing the surgeon to more effectively choose screw placement.
More suitable for patients with severe acetabular bone defects and irregular acetabular shapes
Uniform joint surface morphology
Ensure that all liner models have the same rotational center position.

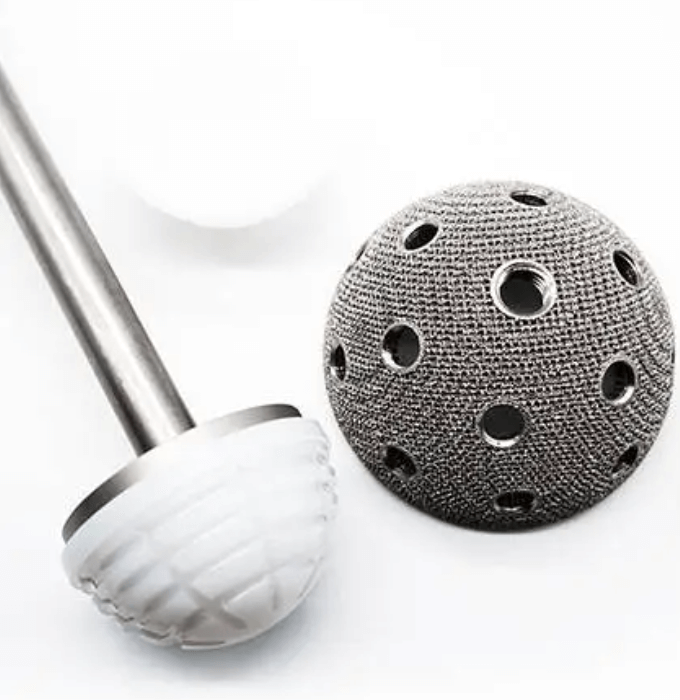

Special Instrumentation
SEE Trabecular Acetabular Cup (DDH & Standard)
| Specification | Outer Diameter | Liner | Femoral Head |
| 44 | 44 | 44/28 | 28 |
| 46 | 46 | 46/28 |
| Specification | Outer Diameter | Liner | Femoral Head |
| 48 | 48 | 48/28 | 28 |
| 50 | 50 | 50/28,50/32 | 28/32 |
| 52 | 52 | 52/28,52/32,52/36 | 28/32/36 |
| 54 | 54 | 54/28,54/32,54/36 | |
| 56 | 56 | 56/28,56/32,56/36 | |
| 58 | 58 | 58/28,58/32,58/36 | |
| 60 | 60 | 60/28,60/32,60/36 | |
| 62 | 62 | 62/28,62/32,62/36 | |
| 64 | 64 | 64/28,64/32,64/36 | |
| 66 | 66 | 66/28,66/32,66/36 |
SEE Trabecular Acetabular Cup (Type I)
Only for XLWzero Ceramic Liner
| Specification | Ceramic Liner | Femoral Head |
| 44 | 3#-28/36 | 28 |
| 46 | 3#-28/36 | |
| 48 | 4#-28/38 | |
| 50 | 5#-32/40 | 32 |
| 52 | 6#-32/42 | |
| 54 | 7#-36/44 | 36 |
| 56 | 8#-36/46 | |
| 58 | 9#-36/48 | |
| 60 | 10#-36/50 | |
| 62 | 11#-36/52 | |
| 64 | 12#-36/54 |
SEE Trabecular Acetabular Cup (Revision)
Only for Cemented Liner (HPE)
| Specification | Outer Diameter | Cemented Liner | Femoral Head | Screw |
| 48 | 48 | 48/28 | 28 | FD-8 |
| 50 | 50 | 50/32 | 32 | |
| 52 | 52 | 52/32 | ||
| 54 | 54 | 54/32 | ||
| 56 | 56 | 56/36 | 36 | |
| 58 | 58 | 58/36 | ||
| 60 | 60 | 60/36 | ||
| 62 | 62 | 62/36 | ||
| 64 | 64 | 64/36 | ||
| 66 | 66 | 66/36 |
Trabecular Acetabular Cup (Revision JCT)
| Specification | Outer Diameter | Liner (Standard) | Liner (10°) | Femoral Head |
| 48 | 48 | 48/28 | 48/28; 48/32 | 28/32/36 |
| 50 | 50 | 50/28; 50/32 | 50/28; 50/32 | |
| 52 | 52 | 52/32; 52/36 | 52/28; 52/32 | |
| 54 | 54 | 54/32; 54/36 | 54/28; 54/32 | |
| 56 | 56 | 56/32; 56/36 | 56/28; 56/32 | |
| 58 | 58 | 58/32; 58/36 | 58/28; 58/32 | |
| 60 | 60 | 60/32; 60/36 | 60/28; 60/32 | |
| 62 | 62 | 62/32; 62/36 | 62/28; 62/32 | |
| 64 | 64 | 64/32; 64/36 | 64/28; 64/32 | |
| 66 | 66 | 66/32; 66/36 | 66/28; 66/32 |
