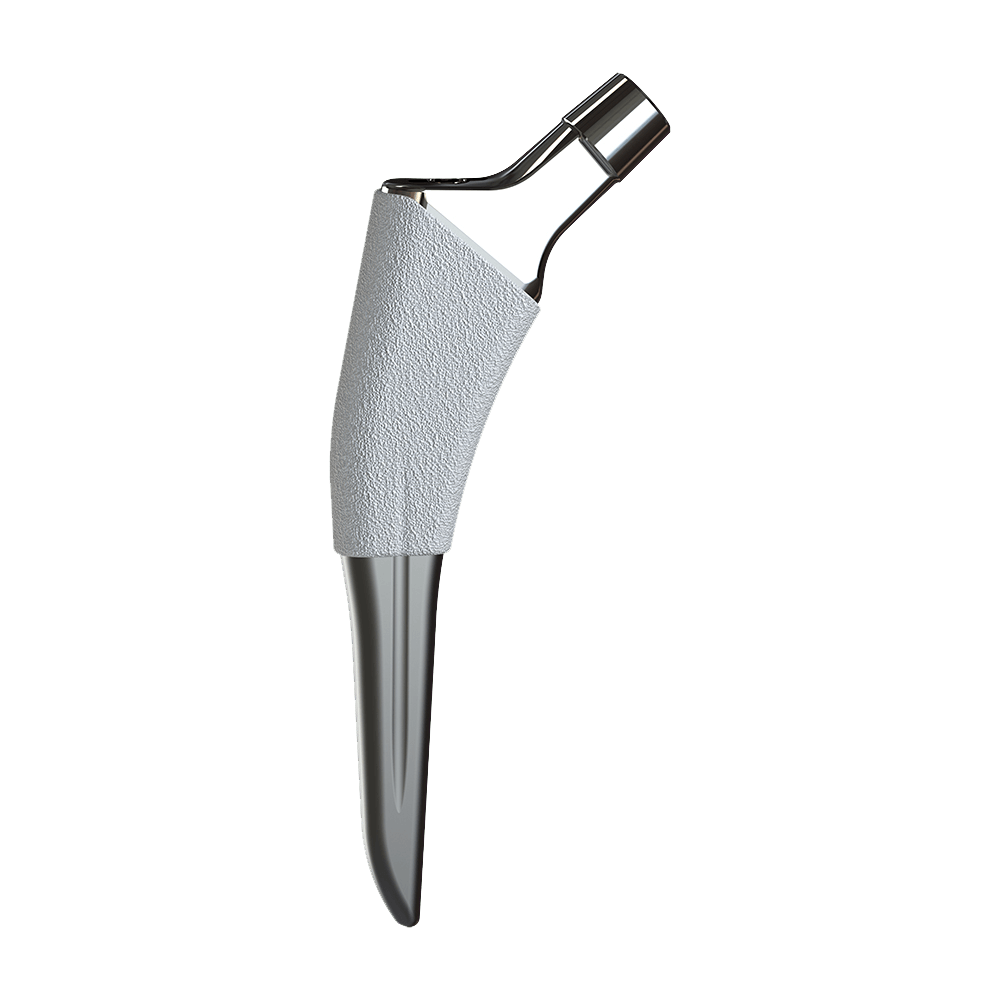

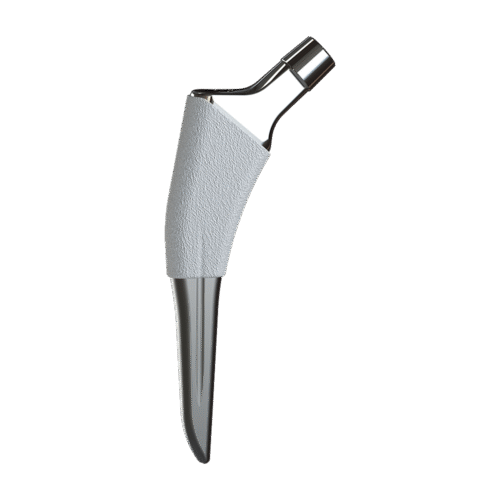

MINI Stem

Femoral Hip System

Product Overview

  • Minimally Invasive Technique:
    Supports simplified and less invasive surgical procedures, reducing recovery time and surgical complexity.

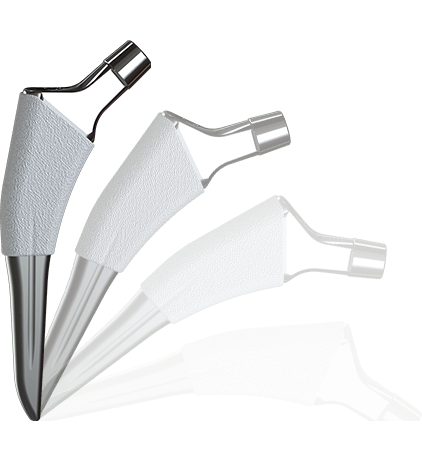

  • Comprehensive Size Range:
    Offers an extensive range of sizes to accommodate a diverse patient population for optimal fit and performance.
  • Axial & Torsional Stability:
    Engineered to provide robust axial and torsional stability, ensuring reliable fixation under various loads.
  • Tissue & Bone Preservation:
    Designed to minimize disruption, preserving both soft tissue and bone for improved long-term outcomes.
  • Hip Function Restoration:
    Aims to restore natural hip function, enhancing mobility and overall quality of life.

Special Description

Minimally invasive

Soft tissue preservation and bone conservation

Stability

Initial fixation and axial & rotational stability

Specification

6-15#, 1mm increment in M/L and 2mm in length

Ti+HA proximal coating provides extensive bone ingrowth

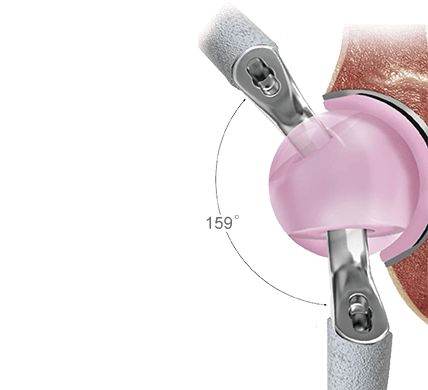

Optimized neck geometry, 159° ROM can be achieved when coupled with HARMONY Acetabular Cup System

Base material:

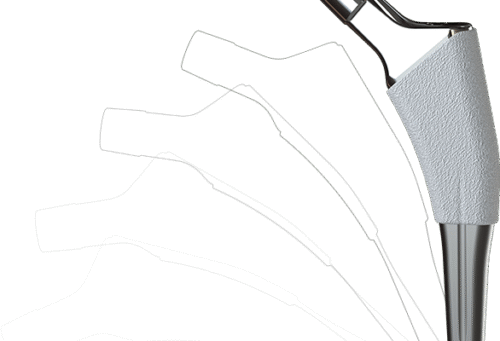

Reduced distal and M/L width, provide proper proximal press fit and preserves distal cortical bone in Dorr Type A femoral

MINI™ Stem, Ti+HA (Vacuum Plasma Sprayed)

Specification Stem length (mm) Offset Neck Angle Material
6 114 36 130° Ti6Al4V
7 116 36
8 118 38
9 120 38
10 122 40
11 124 40
12 126 42
13 128 42
14 130 44
15 132 44
